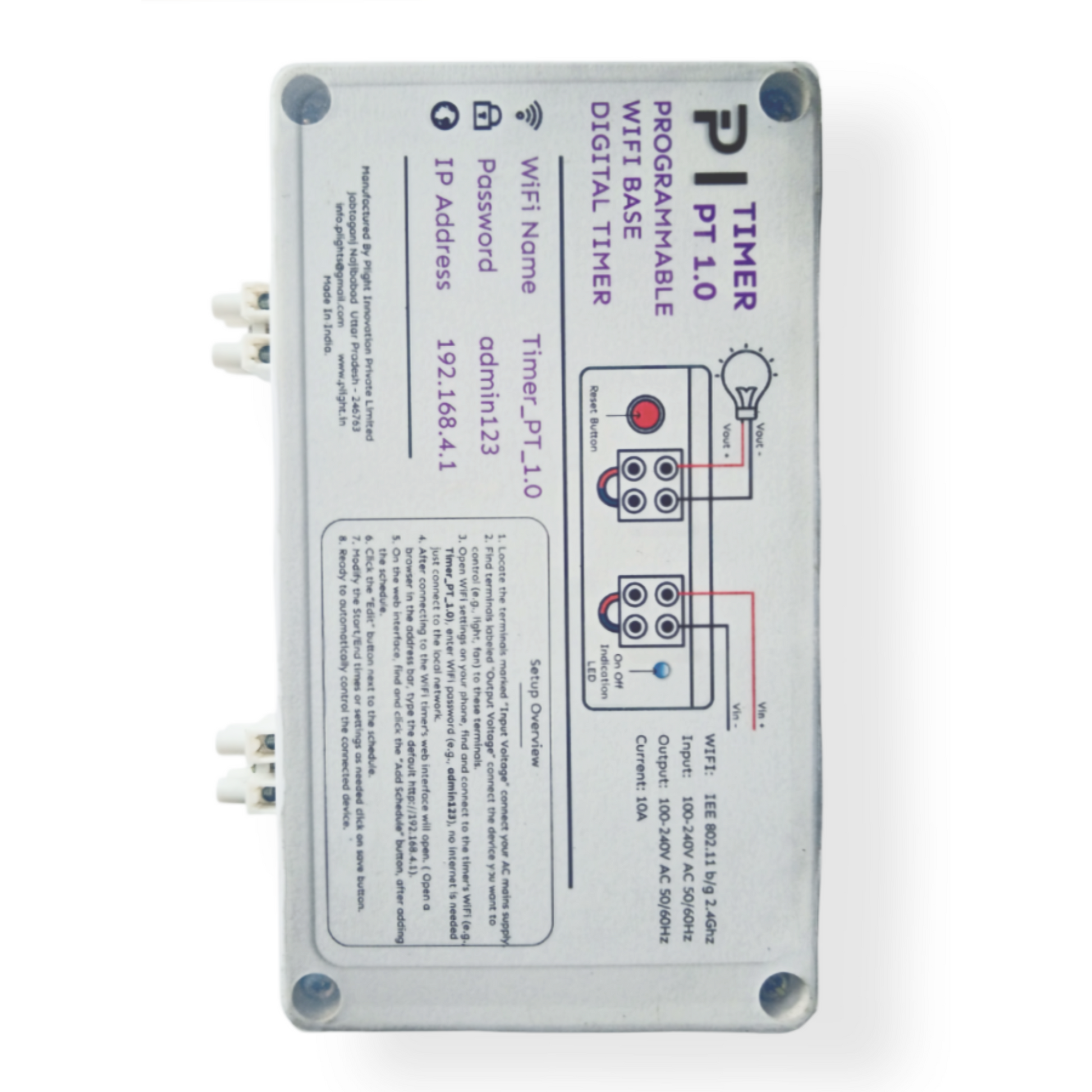

The Timer PT 1.0 is a compact, intelligent smart controller that allows you to automate the ON/OFF operation of electrical appliances based on customization schedules time. Built for simplicity, durability, and energy-saving efficiency, this device helps reduce manual effort while ensuring your devices operate only when needed—saving electricity and time. No external app needed—just use any phone browser to configure. Ideal for residences, shops, agriculture, workshops, school bell system and more.
| Parameter | Details |
|---|---|
| Product Name | WiFi-Based Programmable Digital Timer (Model: TIMER PT 1.0) |
| Power Supply | 100–240V AC, 50/60Hz, 10A, 2400W MAX |
| Output Type | Relay-based AC switch output |
| WiFi Standard | IEEE 802.11 b/g/n (2.4GHz only) |
| Default SSID | Timer_PT_1.0 |
| Default Password | admin123 |
| Configuration Interface | Web-based (No App Required) |
| Access URL | http://192.168.4.1 |
| Schedule Capacity | Supports up to 15 ON/OFF schedules per day |
| Time Format | 24-hour format |
| Control Range | Approx. 30–35 meters (clear line of sight) |
| Enclosure Material | ABS Plastic |

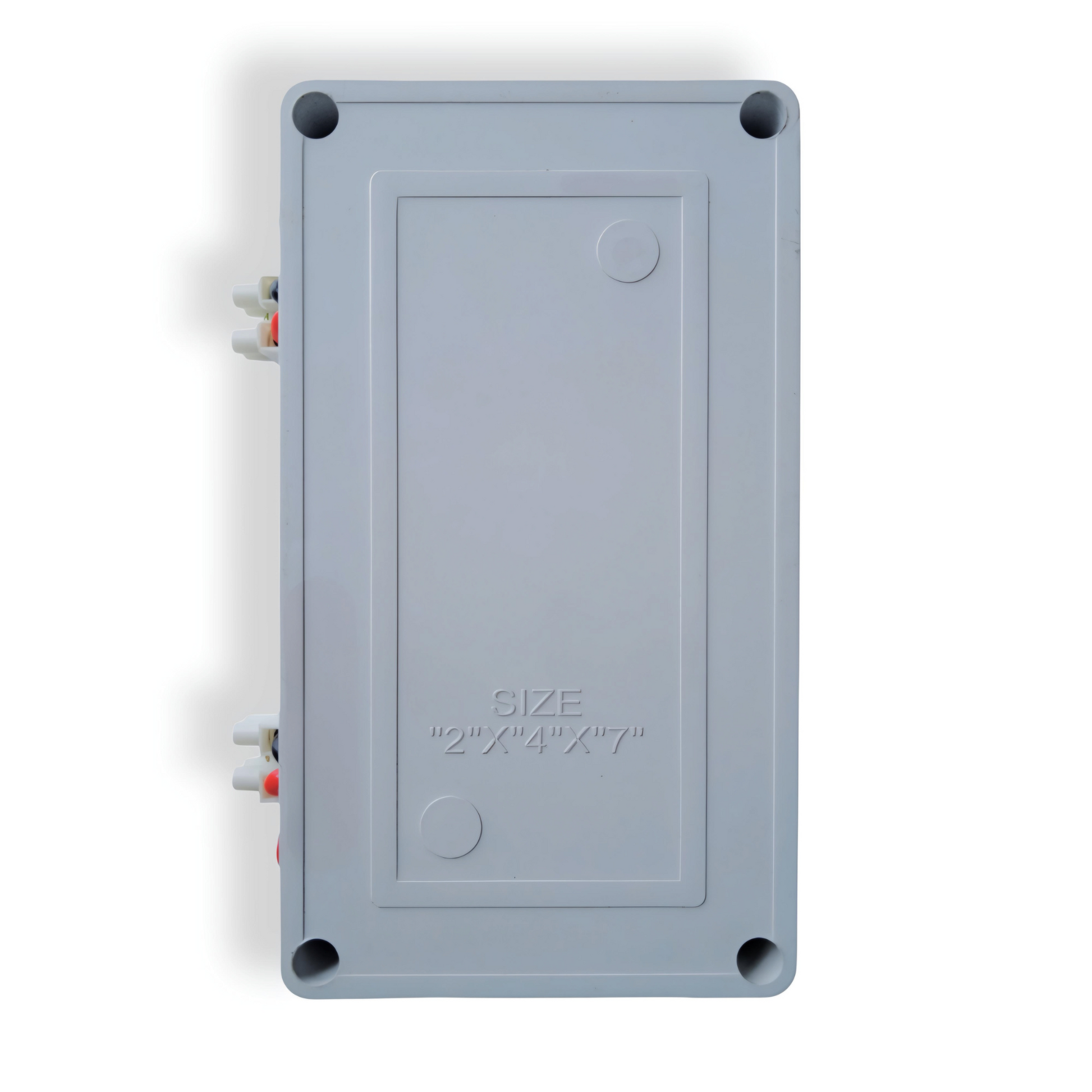

| Dimensions (L × W × H) | 7 inch × 4 inch × 2 inch |
| Operating Temperature | 0°C to 60°C |
